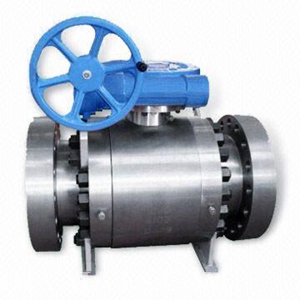

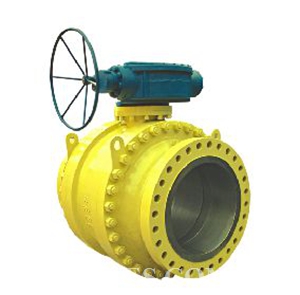

Ball Valve with Trunnion mounted designs is available for over 2" size and are generally used for higher pressure. The ball mounted on trunnion supported in body bearings above and below the ball. Sealing is achieved by spring loaded piston type seats which shut off flow when line pressure acts on the upstream seat. This design provides automatic relief of cavity overpressure.Three pieces body, blow-out proof stem, antistatic device, fire-safe designed and certified, double block and bleed, self relieving. Execution could be full bore or reduced bore, and materials can be carbon steel, stainless steel, special alloys resilient or metal seated.

ProductRange:

Size:NPS2"-48"

ANSI CLASS 150~2500

Body Material: WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L

Ball MaterialL:ASTM A105ENP,A182 F304(L),A351 CF8(3),A182 F316,A351 CF8M,A351 CF3M

Driving: Manual/Electric/Worm Wheel/Pneumatic,etc

Standards Compliance:

DESIGN STD: API 608, API 6D, BS 5351

FACE TO FACE STD: ASME B16.10, API 6D

END CONNECTION STD: ASME B16.5, ASME B16.47, ASME B16.25

TEST STD: API 598, API 6D, BS 6755

Design Features:

1.Trunnion mounted type/Fix type

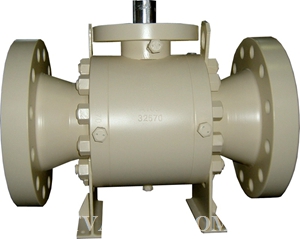

2.Full port or Reduce port

3.Bolted body,side entry,Two piece body/split body/three piece body

4.Blowout-proof stem

5.Flanged end, raised face

6.Fire safe and Anti static

7.Double block & bleed on request

8.Emergency sealant injection

9.Cavity pressure self relief

10.CAPI/iso5211 Mounting pad

Application:

Oil & Gas processing

Refinery

Chemical

Petrochemical

Power plant
