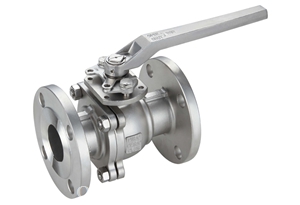

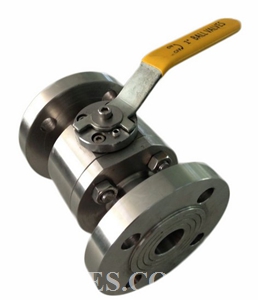

The floating ball valve adopts the design of flexible seal ring structure. It can be used in such industries as petroleum, chemical, steel, paper making, pharmaceutical, etc.According to different material, Floating Ball Valve can be casting steel, forged steel, stainless steel, alloy steel.

ProductRange:

Size:NPS1/2"-12"

ANSI CLASS:150LB-600LB

Body Material:WCB,LCB,WC6,WC9,C12,C5,CF8,CF3,CF3M,CF8M,A105,LF2,F11,F22,F5,F304,F316,F304L,F316L

Ball Material:ASTM A105ENP,A182 F304(L),A351 CF8(3),A182 F316,A351 CF8M,A351 CF3M

Driving: Manual/Electric/Worm Wheel/Pneumatic,etc

Standards compliance:

Design and Manufacture: API 608,API 6D,BS5351

Face to face(end to end): ANSI B16.10,API 6D

Flanged connection:2~~24~to ANSI B16.5

Fire-safe: API 607,API 6FA

Butt welded end: ANSI B16.25

Test and inspection: API 598,API 6D

Design features:

Floating Ball type

Bolted bonnet,Two-piece Body

Full or Reduced bore,Blowout Proof Stem

Fire safe and Anti static

Stainless steel ball

ISO 5211 mounted pad

Stem extension(According to requriements)

Application:

Refinery

Chemical

Petrochemical

Power plant

Pharmaceutical
